inception
Inception is an integrated access control and security alarm system with a design edge that sets it apart from the pack. With web-based software built directly into the main system controller, the Inception system is easy to access using a web browser on a computer, tablet or smartphone.
What you’ll get
-
✺
Security Alarm & Intruder Detection
Inception is a fully featured intruder detection system capable of monitoring up to 1024 detection points with powerful security monitoring features, which tightly integrate with Inception's access control function.
-
✺
Access Control
Inception is a powerful access control system capable of providing physical access for up to 128 doors and 256 card readers, or 32 Lift Cars. The access control system provides logical and clever integration with the security alarm function.
-
✺
Automation
Inception's universal inputs and outputs can be used for monitoring and automated actions and control of systems such as lighting, air conditioning and many other systems. Convenient control is provided via the web-based interface.
-
✺
Multiple Devices
The Inception web interface is responsive, meaning that the layout of the interface is automatically adjusted to suit the device you are using to access it. This keeps Inception's navigation and controls easy to follow, regardless of which device is being used to access it.
-
✺
IP Alarm Transmission
Inception is designed for the modern age of alarm transmission, and is equipped with IP alarm communication functions straight out of the box. Inception can be connected and monitored via its on-board Ethernet connection using the Inner Range Multipath-IP system.
-
✺
Built-in Web Server
With the web-based software interface being built directly into the Inception system controller, there is no need to install security management software onto a separate computer. This provides a quick and hassle-free installation process and outstanding convenience for daily operation and control.
-
✺
Informative Reports
Inception provides all the standard reports that a commercial access system requires such as Access History, Area Control, User Permissions Summary, User Current Location, User Inactivity, and Time On-site.
-
✺
SkyCommand
The SkyCommand App provides fully interactive control of Inception’s security areas, doors, and outputs. The simple interface is designed to be easy and convenient for end user control of the controller.
-
✺
Integration
Inception features a REST-based integration API that allows 3rd party applications to integrate directly, via a high level interface to provide User Management, Live Item State & Item Control.

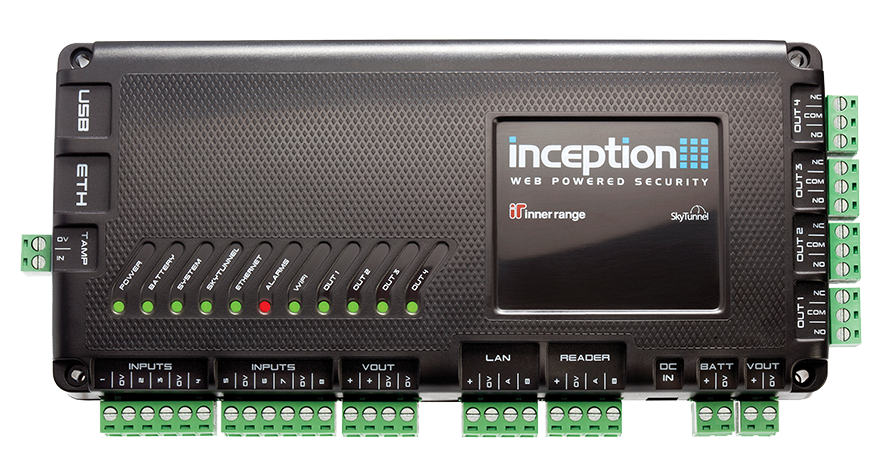

Hardware Features
Built-in web Interface
8 x Universal Zone Inputs – expandable up to 1024
4 x Auxiliary Relay Outputs – expandable up to 1024
Manage up to 4 Doors with the Controller – expandable up to 128
Manage up to 32 Lift Cars and 96 Lift Buttons
Connect up to 8 SIFER readers to the Controller – expandable up to 256
Connect up to 256 Wiegand readers via SLAM's on the RS-485 LAN
RJ45 – 10/100 Ethernet Port
RS-485 Sub-LAN Port
RS-485 Reader-LAN Port
USB Port for connection of WiFi adapter & T4000 Alarm communicator
configurations
4 Door Access Control System
8 Zone Security System
Integrated Access Control & Security System
Inception with LAN Expansion Modules
System Capacities
| On-board Inception Controller | With LAN Expansion | |
|---|---|---|
| Doors | 4* | 128 |
| SIFER Readers | 8 | 256 |
| Wiegand Readers | 8** | 128/256** |
| Areas | 96 | 96 |
| Inputs | 8 | 1024 |
| Outputs | 4* | 1024 |
| Lift Cars | 32 | 32 |
| Users | 10,000 | 10,000 |
| Events | 250,000 | 250,000 |
* The Inception controller has 4 relay outputs in total. These can be used as lock relays for doors or general purpose dry contact outputs
** Additional hardware required
Designed For End Users
Not Security Professionals
